Contour turn VS Contour turn along operation in CAPSturn

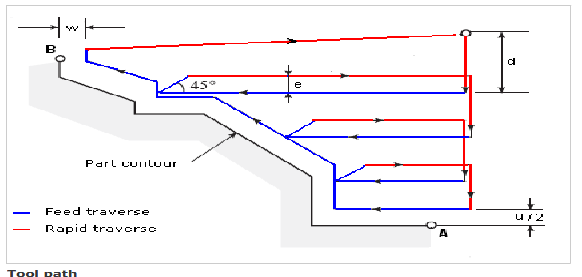

Contour Turn in CAPSturn:
- It is commonly used for machining cylindrical stock or when only a single contour needs to be shaped.
- In this process, material removal occurs in a single direction, specifically along the diameter.
- The end result is a step or contour profile as per the given finishing allowances.
- It is particularly useful when a significant amount of material needs to be removed.
- Not useful if you have a casting or forging where you want to remove just 2-3 mm material from the profile.

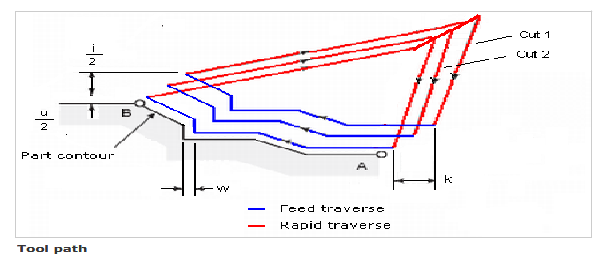

Contour Turn Along Part in CAPSturn:
- Contour Turn Along Part is pattern repeat operation where the toolpath traces the profile in both x and z direction.
- The toolpath adapts as it moves along different sections, machining varying profiles in different areas of the part.
- It is useful when material to be remove is less (casting or forging).
